Quadrature Oscillator

On Tuesday, May 13, 2014 3:58:36 PM UTC-4, Jim Thompson wrote:
> On Tue, 13 May 2014 12:50:50 -0700 (PDT), George Herold
>
> <gherold@teachspin.com> wrote:

> >> Yep, the Q is so high it takes a bare twiddle to make it go.
> >OK.. From my limited oscillator experience it will depend on how good
> >the cap is.  (good, as in low dissipation.)

> >>
>
> >> I threw this together some 8 years ago to demonstrate the gyrator
> >> band-pass effect.  IRL I used an AGC loop.  (An accurate clipper work
> >> also.)
> >>
> >> You can get really low distortion with good OpAmps.  I built one for a
> >> Sperry Flight Systems synchronous detect at 400Hz... 0.001% harmonic
> >> distortion :-)
>
> >>
>
> If you run the numbers you'll find that dissipation factor (in active
> filters) is only a problem at low frequencies.

Hmm OK... I'll have to think about that.  (I'm not even sure the dissipation factor is one number, it probably changes with frequency.)
I've got an SRS LCR meter, but I don't really believe the dissipation numbers when they get low... Sometimes it gives me a negative number for instance.

I did just do a simple Wein bridge oscillator, I used NPO ceramics,
someone in production subbed in a film cap. And that caused it to stop working at the highest frequencies  (80kHz.)

George H.
>
> See...
>
> <http://www.analog-innovations.com/SED/StateVariableFilter(P+1).pdf>
>
> for how I cured (in the early '70's) the dissipation factor problem in
> telephone-signaling low-frequency filters.
>
>
>
>                                         ...Jim Thompson
>
> --
>
> | James E.Thompson                                 |    mens     |
>
> | Analog Innovations                               |     et      |
>
> | Analog/Mixed-Signal ASIC's and Discrete Systems  |    manus    |
>
> | San Tan Valley, AZ 85142   Skype: Contacts Only  |             |
>
> | Voice:(480)460-2350  Fax: Available upon request |  Brass Rat  |
>
> | E-mail Icon at http://www.analog-innovations.com |    1962     |
>
>
>
> I love to cook with wine.     Sometimes I even put it in the food.

On Tuesday, May 13, 2014 4:15:54 PM UTC-4, John Silverman wrote:
> Tim Wescott <tim@seemywebsite.really> wrote:

> > I'd be tempted to integrate-integrate-invert.  It would take three op-
>
> > amps, but you may have a better chance to get each section working
> > correctly.  Of course you'd need the obligatory teeny bit of lag
> > somewhere, to make the oscillation start.
>
> >
>
>
>
> This is getting way too complicated. Analog circuits drift and can never
> guarantee quadrature. A simple 74HC74 will. See
> http://www.wb5rvz.com/sdr/ensemble_rx_ii_vhf/04_div.htm
Hmm that might work.  (Well I'll have to figure it out first :^)
Does it keep a fixed phase reference to the input LO?

Thanks,
George H.

On Tuesday, May 13, 2014 4:45:01 PM UTC-4, whit3rd wrote:
> On Tuesday, May 13, 2014 1:15:54 PM UTC-7, John Silverman wrote:
>
> > This is getting way too complicated. Analog circuits drift and can never
> > guarantee quadrature. A simple 74HC74 will. See
> >
> > http://www.wb5rvz.com/sdr/ensemble_rx_ii_vhf/04_div.ht
>
> There's ways to make an analog signal lock-in to a digital
> quadrature clock, of course.
> There's also a switched-capacitor solution, see figure 15
>
> <http://www.ti.com/lit/an/snoa572c/snoa572c.pdf>

OK, But I don't think that will go anywhere near 1 MHz.
>
> And, if one wishes to go old-school, an LC oscillator
> puts out sin(wt) voltage on the capacitor, and cos(wt)
> current through the inductor; you can make a sense
> coil lightly coupled to the inductor to pick off the second
> phase.  If Q is high, it needs no correction; if Q is low,
> you can make a weighted sum of the two signals that is
> tunable to get closer to 90.00 degrees phase, and
> a simple multiplicative mixer makes a DC signal of the
> error, to guide  the tuning.

OK thanks,
George H.

On Tuesday, May 13, 2014 9:12:24 PM UTC-4, John Silverman wrote:
> Tim Wescott <tim@seemywebsite.really> wrote:
>
>
>
> > On Tue, 13 May 2014 20:15:54 +0000, John Silverman wrote:
>
>
>
> >> This is getting way too complicated. Analog circuits drift and can
>
> >> never guarantee quadrature. A simple 74HC74 will. See
>
> >>
>
> >> http://www.wb5rvz.com/sdr/ensemble_rx_ii_vhf/04_div.htm
>
> >
>
> > If George can deal with square waves, yes, that's going to work way
> > better than an analog solution.
> >
> > If he needs sine waves, by the time he's gotten the harmonics beaten
> > out of that he'll be back to depending on analog components for his
> > precision.
>
>
> I dunno why he needs quadrature signals for a lockin, but presumably they
> are for I-Q. Mixers work better with square waves.

Oh I wanted to do these CV measurments, so put an AC voltage across a cap and
measure the out of phase current.
I can do this other ways, But I was thinking if I started with a source that had both I and Q, then it might be easier.

And yeah I think it will all get turned into square waves to turn switches or something on and off.  So your D-flip flop circuit may do the trick.

George H.
>
>
>
> Also, the 74HC74 guarantees symmetry, which reduces the even harmonics.
>
> Analog methods can drift, so you never know what you have.

On Tuesday, May 13, 2014 10:45:08 PM UTC-4, Bill Sloman wrote:
> On Wednesday, 14 May 2014 00:36:36 UTC+10, George Herold  wrote:
>=20
> > Quadrature oscillator.
>=20
> > Hi all,  As part of the CV measurements (from a previous post)=20
> > I'm thinking about a 1 MHz lockin.
>  > (Maybe a different thread to talk about how to do the switching.)=20
>  > I was wondering if I could make a quadrature oscillator from opamps.
>=20
>=20
>  Here something that might be interesting
http://www.janascard.cz/PDF/An%20ultra%20low%20distortion%20oscillator%20wi=
th%20THD%20below%20-140%20dB.pdf
>=20
Got it... That looks a lot like what J. Williams did (AN43??) =20
He (JW) beat on the Wein bridge till he got distortion down below the origi=
nal=20
HP200.  It was in one of his Electronics compendiums also. =20
(Well worth a read if you haven't already.)

George H.
>=20
> The LME49710 is much too slow to be interesting at 1MHz - it's amazing di=
stortion performance stops being amazing above a few kHz - but the amplitud=
e control scheme might be worth looking at.
>=20
>=20
>=20
> I've played around (only in LTSpice) with using an AD734 to provide the v=
ariable part of the amplitude-controlling feedback for a 17kHz (100,000 rad=
ian per second) oscillator. At 1MHz you might look at an AD834.
>=20
>=20
>=20
> My amplitude control scheme looks a bit different - e-mail me if you want=
 to look at it (since I'm thinking about publishing it if I ever get around=
 to putting together and testing a real circuit).
>=20
>=20
>=20
> Using an AD825 or some other fast, low-distortion part to provide the bul=
k of the gain (tweaked so that the AD834 is nominally doing nothing, and as=
  likely to provide negative feedback as positive as the component values d=
rift) is an attractive way to go.=20
>=20
>=20
>=20
> Even "low distortion" four quadrant multipliers like the AD734 and AD834 =
have much higher levels of distortion than regular, low distortion op amps,=
 but if you only use them to tweak the loop gain the amount of extra distor=
tion they feed in is small - verging on negligible if you spend heavily on =
stable passive components.
>=20
>=20
>=20
> --=20
>=20
> Bill Sloman, Sydney

On Thursday, 15 May 2014 02:41:55 UTC+10, George Herold  wrote:
> On Tuesday, May 13, 2014 10:45:08 PM UTC-4, Bill Sloman wrote:=20
> > On Wednesday, 14 May 2014 00:36:36 UTC+10, George Herold  wrote:
> > =20
> > > Quadrature oscillator.=20
> > =20
> > > Hi all,  As part of the CV measurements (from a previous post)=20
> > > I'm thinking about a 1 MHz lockin.
> >  > (Maybe a different thread to talk about how to do the switching.)=20
> >  > I was wondering if I could make a quadrature oscillator from opamps
> >
> >  Here something that might be interesting
>=20
> http://www.janascard.cz/PDF/An%20ultra%20low%20distortion%20oscillator%20=
with%20THD%20below%20-140%20dB.pdf=20
> > =20
> Got it... That looks a lot like what J. Williams did (AN43??) =20
>=20
> He (JW) beat on the Wein bridge till he got distortion down below the ori=
ginal HP200.  It was in one of his Electronics compendiums also. =20
>=20
> (Well worth a read if you haven't already.)

Read it. It's much the same idea, but Linear Technology doesn't seem to hav=
e an equivalent of the LME49710 so he didn't do quite as well. I still like=
 the AD734 and AD834 as the loop-gain twiddling elements, but they aren't c=
heap. Jim Williams would not have used them because they are Analog Devices=
 parts, and Linear Technology doesn't seem to have any kind of decent multi=
plier. Thaler does - the THAT 2181, which can live with lower supply voltag=
es than the AD734.

--=20
Bill Sloman, Sydney
 Bill Sloman, Sydney

George Herold <gherold@teachspin.com> wrote:

> On Tuesday, May 13, 2014 9:12:24 PM UTC-4, John Silverman wrote:

>> > On Tue, 13 May 2014 20:15:54 +0000, John Silverman wrote:
>> >> This is getting way too complicated. Analog circuits drift and can
>> >> never guarantee quadrature. A simple 74HC74 will. See

>> >> http://www.wb5rvz.com/sdr/ensemble_rx_ii_vhf/04_div.htm

> Oh I wanted to do these CV measurments, so put an AC voltage across a
> cap and measure the out of phase current.
> I can do this other ways, But I was thinking if I started with a
> source that had both I and Q, then it might be easier.

> And yeah I think it will all get turned into square waves to turn
> switches or something on and off.  So your D-flip flop circuit may do
> the trick.

> George H.

Yes, the idea is to feed a low level sine wave to the junction, then
measure the in-phase and quadrature currents. Keithley has a brief
article decribing some of the challenges of making the measurement at

http://www.keithley.com/data?asset=52523

An example of a CV measurement is shown on Page 3 of

<http://gato-docs.its.txstate.edu/cos-department-of-
physics/manuals/CVanalyzer/CVanalyzer.pdf>

The description reads:

  The block-diagram of the Keithley 590 CV analyzer is printed in Fig.
  3. The system can be used to measure the real and the imaginary part
  of the  impedance  at two different frequencies (ie 100  kHz,  and 1
  MHz). The impedance is determined by applying an AC voltage of 15 mV
  to the  sample and measuring the current that is in  phase  with the
  voltage and  the  current that is 90 degrees out of  phase  with the
  voltage.

The quadrature measurement requires square waves with low asymmetry,
which the 74AC74 provides.

The trick will be to generate the 1MHz exitation sine wave and the 4X
clock to the 74AC74. It needs to be in phase with the 1MHz sine wave.

Frequency doublers can be made using a limiter driving a tuned circuit.
The tuned circuit frequency can be adjusted to vary the phase. Two
doublers will give the needed 4X clock.

For broadband work, it would be desirable to minimize the number of tuned
circuits needed. Wenzel shows how to make wideband doublers using
switching diodes at

http://www.wenzel.com/pdffiles1/pdfs/diodedbl.pdf

A single tuned circuit at the output could be used to adjust the phase.

Phil Hobbs <pcdhSpamMeSenseless@electrooptical.net> wrote:

> On 05/13/2014 04:15 PM, John Silverman wrote:
>> This is getting way too complicated. Analog circuits drift and can
>> never guarantee quadrature.
>
> That isn't so.  As long as slew limits are observed, an integrator
> will give a very accurate 90 degree phase shift.

You are correct. I made a simple comparison model in LTspice and tried
to break it. Nothing had much effect on the phase angle, except the op
amp GBW needs to be above 50 MHz, preferably 200 MHz or higher. I post
the LTspice files at the end.

> Servoing the frequency to
> make the amplitudes equal isn't very hard.  That makes the component
> tolerances all come out as frequency shifts, and measuring the
> frequency accurately gets rid of all of it, for the purposes of
> capacitance measurement.

No need to go to that complexity. Simply adjusting the capacitance in
the op amp feedback will trim the amplitude. See the LTspice file at the
end.

This allows the measurement to be made at a specific frequency, such as
1 MHz, which helps repeatability.

> A simple 74HC74 will. See
>>
>> http://www.wb5rvz.com/sdr/ensemble_rx_ii_vhf/04_div.htm
>
> Johnson counters are great in PLLs, where the square wave output is
> just what you want, but not much use for making quadrature sine
> oscillators (as others have noted).

The intended use is a CV analyzer. The quadrature signals are not
applied to the junction. They are needed to apply switching signals to
the in-phase and quadrature detectors. A CMOS switcher requires square
waves at logic level, which is naturally provided by the 74AC74.

Sine waves would need to be converted square waves, which requires a
limiter.

The switching signals need to have low even harmonic distortion. This
may be difficult to achieve using sine waves and a limiter, but it is a
natural result of dividing in a 74AC74.

The integrator approach is single frequency, so different modules would
be needed to cover specific frequencies. The 74AC74 is inherently
broadband so a single ic can be used over a broad frequency range.

The 74AC74 will clock at a minimum of 140 MHz. This would allow
measurements up to 35 MHz. It may be difficult to get an op amp
integrator to work at higher frequencies and still provide an accurate
90 degree phase shift.

One difficulty with the 74AC74 approach is to get a 4X clock with the
proper phase aligned with the 1 MHz exitation signal. I proposed several
solutions in an earlier post.

> Cheers
>
> Phil Hobbs

Here are the LTspice files:

Version 4
SHEET 1 980 696
WIRE 192 80 144 80
WIRE 304 80 272 80
WIRE -32 160 -96 160
WIRE 0 160 -32 160
WIRE 32 160 0 160
WIRE 144 160 144 80
WIRE 144 160 112 160
WIRE 208 160 144 160
WIRE 304 160 304 80
WIRE 304 160 272 160
WIRE -256 176 -256 160
WIRE -96 176 -96 160
WIRE 144 256 144 160
WIRE 160 256 144 256
WIRE -256 272 -256 256
WIRE -96 272 -96 256
WIRE 272 272 224 272
WIRE 304 272 304 160
WIRE 304 272 272 272
WIRE 160 288 144 288
WIRE 144 320 144 288
WIRE -256 384 -256 368
WIRE 192 400 144 400
WIRE 304 400 272 400
WIRE -256 480 -256 464
WIRE 0 480 0 160
WIRE 32 480 0 480
WIRE 144 480 144 400
WIRE 144 480 112 480
WIRE 208 480 144 480
WIRE 304 480 304 400
WIRE 304 480 272 480
WIRE 144 576 144 480
WIRE 160 576 144 576
WIRE 272 592 224 592
WIRE 304 592 304 480
WIRE 304 592 272 592
WIRE 160 608 144 608
WIRE 144 640 144 608
FLAG -256 480 0
FLAG -256 272 0
FLAG 192 240 +V
FLAG -256 160 +V
FLAG -256 368 -V
FLAG 192 304 -V
FLAG -32 160 INp
FLAG 272 272 Vout
FLAG 144 320 0
FLAG -96 272 0
FLAG 192 560 +V
FLAG 192 624 -V
FLAG 272 592 Vout2
FLAG 144 640 0
SYMBOL voltage -256 160 R0
SYMATTR InstName V1
SYMATTR Value +15
SYMBOL voltage -256 368 R0
SYMATTR InstName V2
SYMATTR Value -15
SYMBOL res 128 144 R90
WINDOW 0 0 56 VBottom 2
WINDOW 3 32 56 VTop 2
SYMATTR InstName R1
SYMATTR Value 100
SYMBOL voltage -96 160 R0
WINDOW 3 24 104 Invisible 2
SYMATTR Value PULSE(0 1m 0 1u 1u 10m 1)
SYMATTR Value2 AC 1
SYMATTR InstName V3
SYMBOL cap 272 144 R90
WINDOW 0 0 32 VBottom 2
WINDOW 3 32 32 VTop 2
SYMATTR InstName C1
SYMATTR Value 1.5n
SYMBOL res 128 464 R90
WINDOW 0 0 56 VBottom 2
WINDOW 3 32 56 VTop 2
SYMATTR InstName R3
SYMATTR Value 100
SYMBOL cap 272 464 R90
WINDOW 0 0 32 VBottom 2
WINDOW 3 32 32 VTop 2
SYMATTR InstName C2
SYMATTR Value 1.5n
SYMBOL res 288 64 R90
WINDOW 0 0 56 VBottom 2
WINDOW 3 32 56 VTop 2
SYMATTR InstName R2
SYMATTR Value 10k
SYMBOL res 288 384 R90
WINDOW 0 0 56 VBottom 2
WINDOW 3 32 56 VTop 2
SYMATTR InstName R4
SYMATTR Value 10k
SYMBOL opamps\\universalopamp2 192 592 R0
WINDOW 123 22 35 Left 2
SYMATTR Value2 Avol=1e6 GBW=50Meg Slew=50Meg
SYMATTR InstName U2
SYMBOL opamps\\universalopamp2 192 272 R0
WINDOW 123 22 35 Left 2
SYMATTR Value2 Avol=1e6 GBW=200Meg Slew=50Meg
SYMATTR InstName U1
TEXT -72 24 Left 2 !.ac dec 512 100 1e8
TEXT -72 -8 Left 2 ;'Op Amp Integrator Comparison Model
TEXT 152 24 Left 2 ;.tran 0 100m 0 1u

Here is the PLT file:

[AC Analysis]
{
   Npanes: 1
   {
      traces: 2 {524290,0,"V(vout)"} {524292,0,"V(vout2)"}
      X: ('M',1,1,0,1e+008)
      Y[0]: (' ',0,0.0398107170553497,7,125.892541179417)
      Y[1]: (' ',0,0,20,200)
      Volts: ('m',0,0,1,0,0.0001,0.0011)
      Log: 1 2 0
      GridStyle: 1
      PltMag: 1
      PltPhi: 1 0
   }
}
[Transient Analysis]
{
   Npanes: 2
   Active Pane: 1
   {
      traces: 1 {524290,0,"V(vout)"}
      X: ('m',1,0,0.0003,0.003)
      Y[0]: (' ',1,-2,0.2,0)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Volts: (' ',0,0,1,-2,0.2,0)
      Log: 0 0 0
      GridStyle: 1
   },
   {
      traces: 1 {524291,0,"(V(inp)-V(inn))/I(V3)"}
      X: ('m',1,0,0.0003,0.003)
      Y[0]: ('K',3,-2002,2,-1978)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Units: "ohm" ('K',0,0,0,-2002,2,-1978)
      Log: 0 0 0
      GridStyle: 1
   }
}

John Silverman <Nospam@me.com> wrote:

> George Herold <gherold@teachspin.com> wrote:

>> And yeah I think it will all get turned into square waves to turn
>> switches or something on and off.  So your D-flip flop circuit may do
>> the trick.
>
>> George H.

Here's another approach. You need a low level sine wave to apply to the
junction to maintain linearity. Perhaps 10mV to 100mV or so. This means
you don't need a separate high level oscillator with low harmonic
distortion, which may be difficult to achieve at MHz frequencies.

It means you can afford a simple resonant circuit on the 74AC74 output to
generate the exitation sinewave. One advantage of the 74AC74 is the
output square wave has very little even harmonics. This is desirable for
the detection process. It also means very low even harmonics will be fed
to the junction.

A simple LC tank with a Q of 40 appears to work very well. Setting XL to
around 500 ohms seems to be a good starting point. Most commercial
inductors can achieve a Q of 35 - 40 at these frequencies. You may even
want a lower Q to reduce the sensitivity to changes in stray capacity.

You could have several tank circuits for different frequencies,  such as
100KHz, 1MHz, 10MHz, and so on. You may need a small trim capacitor to
set the phase angle to the exact value for each frequency.

Here's the LTspice files. You can adjust C2 and watch how it changes the
phase of the sine wave. With a Q of 40, it is a fairly sensitive
adjustment.

Version 4
SHEET 1 1300 680
WIRE 1136 -144 608 -144
WIRE 608 -48 608 -144
WIRE 640 -48 608 -48
WIRE 864 -48 800 -48
WIRE 944 -48 864 -48
WIRE 1248 -48 1104 -48
WIRE 1264 -48 1248 -48
WIRE 640 0 608 0
WIRE 832 0 816 0
WIRE 944 0 912 0
WIRE 1136 0 1136 -144
WIRE 1136 0 1120 0
WIRE 1248 0 1136 0
WIRE 1264 0 1248 0
WIRE 608 96 608 0
WIRE 672 96 608 96
WIRE 912 96 912 0
WIRE 912 96 672 96
WIRE 608 112 608 96
WIRE 864 144 864 -48
WIRE 1248 144 864 144
WIRE 1264 144 1248 144
WIRE 832 176 832 0
WIRE 1248 176 832 176
WIRE 1264 176 1248 176
WIRE 864 192 864 144
WIRE 608 208 608 192
WIRE 864 288 864 256
WIRE 944 288 864 288
WIRE 976 288 944 288
WIRE 1264 288 976 288
WIRE 864 304 864 288
WIRE 976 304 976 288
WIRE 864 384 864 368
WIRE 976 400 976 384
FLAG 608 208 0
FLAG 672 96 Clk
FLAG 1248 144 A2Q
FLAG 1248 0 A3!Q
FLAG 1248 -48 A3Q
FLAG 1248 176 A2!Q
FLAG 976 400 0
FLAG 864 384 0
FLAG 944 288 C2L1
SYMBOL digital\\dflop 720 -96 R0
WINDOW 3 8 168 Invisible 2
SYMATTR Value TD=2n VHigh=0.95
SYMATTR InstName A2
SYMBOL digital\\dflop 1024 -96 R0
WINDOW 3 8 168 Invisible 2
SYMATTR Value TD=2n VHigh=0.95
SYMATTR InstName A3
SYMBOL voltage 608 96 R0
WINDOW 123 0 0 Left 2
WINDOW 39 0 0 Left 2
SYMATTR InstName V1
SYMATTR Value SINE(0.5 0.5 4e6)
SYMBOL cap 848 192 R0
SYMATTR InstName C1
SYMATTR Value 10pf
SYMBOL cap 848 304 R0
WINDOW 3 23 53 Left 2
SYMATTR InstName C2
SYMATTR Value 299pf
SYMBOL ind 960 288 R0
SYMATTR InstName L1
SYMATTR Value 82&#4294967295;h
SYMATTR SpiceLine Rser=12
TEXT 616 -208 Left 2 !.tran 0 100u 95u
TEXT 616 -240 Left 2 ;'I-Q Quadrature Generator With Sine Output
TEXT 984 -208 Left 2 !.options plotwinsize=0
TEXT 984 -184 Left 2 !.options nomarch
TEXT 1056 272 Left 2 ;Sine wave to buffer amp

Here's the PLT file:

[Transient Analysis]
{
   Npanes: 4
   Active Pane: 2
   {
      traces: 1 {524293,0,"V(c2l1)"}
      X: ('&#4294967295;',1,0,5e-007,5e-006)
      Y[0]: (' ',1,-1,0.2,1)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Volts: (' ',0,0,1,-1,0.2,1)
      Log: 0 0 0
      GridStyle: 1
   },
   {
      traces: 1 {524292,0,"V(a3q)"}
      X: ('&#4294967295;',1,0,5e-007,5e-006)
      Y[0]: ('m',0,0,0.09,0.99)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Volts: ('m',0,0,0,0,0.09,0.99)
      Log: 0 0 0
      GridStyle: 1
   },
   {
      traces: 1 {524291,0,"V(a2q)"}
      X: ('&#4294967295;',1,0,5e-007,5e-006)
      Y[0]: (' ',1,-0.1,0.1,1)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Volts: (' ',0,0,1,-0.1,0.1,1)
      Log: 0 0 0
      GridStyle: 1
   },
   {
      traces: 1 {524290,0,"V(clk)"}
      X: ('&#4294967295;',1,0,5e-007,5e-006)
      Y[0]: (' ',1,0,0.1,1)
      Y[1]: ('_',0,1e+308,0,-1e+308)
      Volts: (' ',0,0,1,0,0.1,1)
      Log: 0 0 0
      GridStyle: 1
   }
}

George Herold <gherold@teachspin.com> wrote:

> Quadrature oscialltor.
[...]
> I was wondering if I could make a quadrature oscillator from opamps.

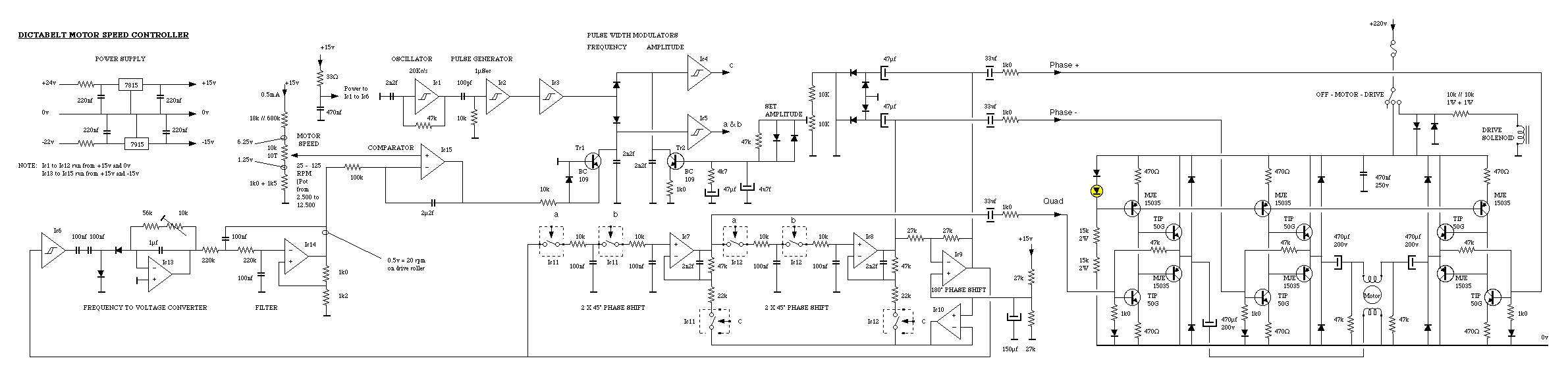

This is probably a bit too elaborate for your requirements.  It uses PWM
control of the time constants and the amplitude.

http://www.poppyrecords.co.uk/other/images/MotorDriveInverter2.gif


--
~ Adrian Tuddenham ~
(Remove the ".invalid"s and add ".co.uk" to reply)
www.poppyrecords.co.uk
